Built to Be Trusted
A high-performance Pivot & Aller Retour door system combining impressive dimensions, sleek design and advanced engineering for distinctive architectural entrances.

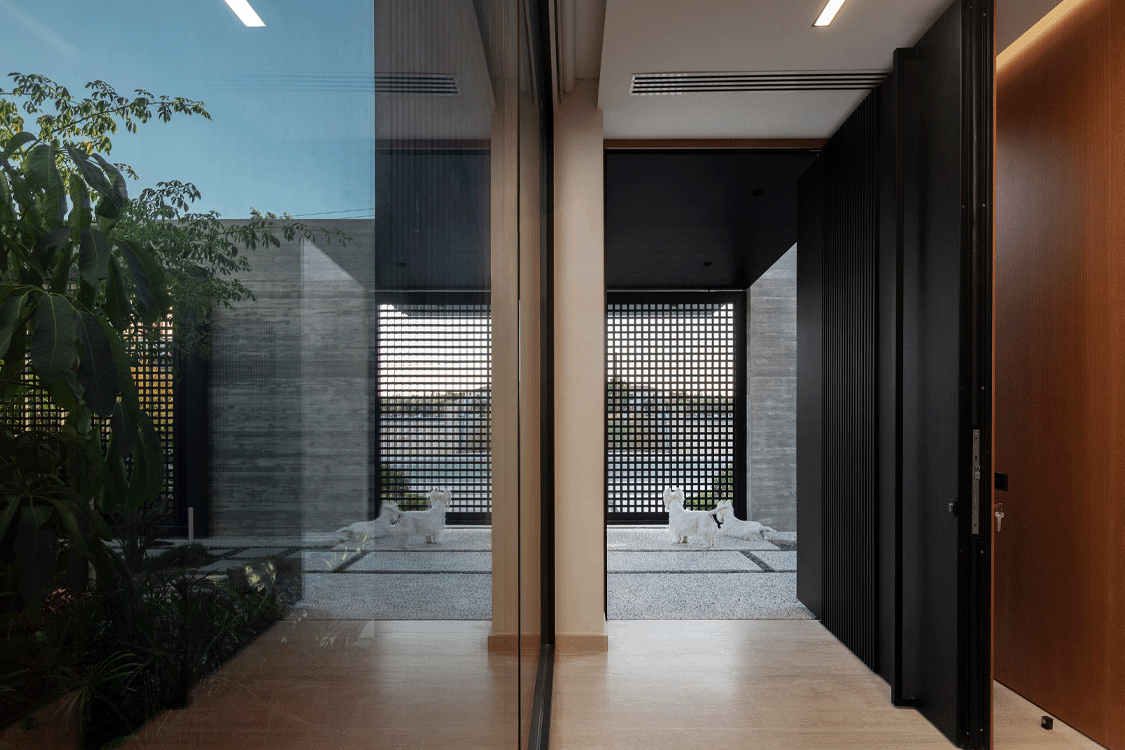

MU2075 PIVOT
HINGED ALUMINIUM SYSTEM
Impressive Dimensions
Engineered for striking large-scale entrance doors, supporting door weights up to 300 kg.
Exceptional Design Freedom
The sash and frame create a flush, unified surface for a clean architectural aesthetic. Compatibility with glass, HPL, aluminium composite panels and other materials, enable a variety of distinctive designs.
Smooth Pivot Operation
Powerful concealed pivot mechanisms provides smooth, effortless rotation, positioned centrally or off-centre.
Advanced Security & Automations
A wide choice of security and electric locks, with compatibility for fingerprint recognition, keypads, card access and anti-burglary hardware.
High Performance
Excellent thermal and acoustic performance.
System in Detail
- Concealed pivot or aller retour mechanisms can be placed in the middle of the door or off-center, and can adjust the door left – right and up – down.
- The mechanisms can withstand weight up to 250 - 300 kg.
- Powerful floor rotation mechanism for easy and smooth opening.
- Diverse materials can be used to cover the frame (composite aluminium panels, glass, HPL, panels etc.) providing beautiful and varied combinations of designs options.
- The sash and frame create a unified level surface.
- Several handles are available with a large selection of security locks including electric locks.
- Compatible with specialized locking mechanisms such as fingerprint recognition, keypad, card as well as anti-burglar hardware.
Technical Data MU2075 Pivot & Aller Retour
Detailed specifications for accurate planning and comparison.
Frame Width: 75 mm
Sash Width: 75 mm
Pivot Mechanism from Sash Edge: Variable / Minimum 250 mm
Minimum Construction Width: 1.25 m
Maximum Door Weight: 300 kg
Glass Options: Up to 43 mm
Thermal Transmittance – Uw [W/(m²K)]: ≥ 1.2
Sound Reduction: Up to 51 dB
Opening with Fixed Panel Pivot Door
Choose Your Colour
Colours & finishes shown here vary from the final product. For an accurate representation, visit our showrooms to see them in person.
