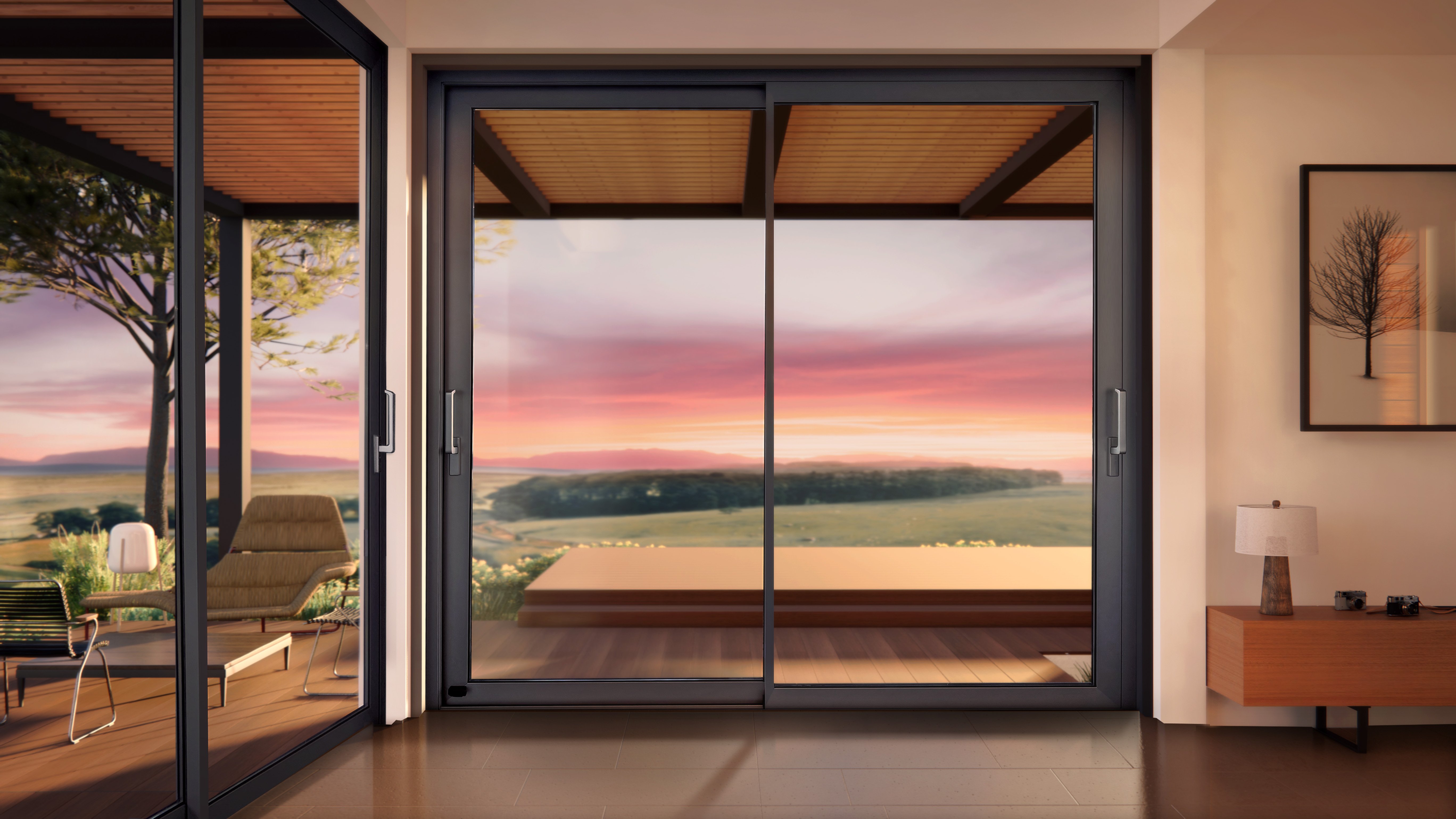

Affordable long standing solution for sliding - lift & slide systems

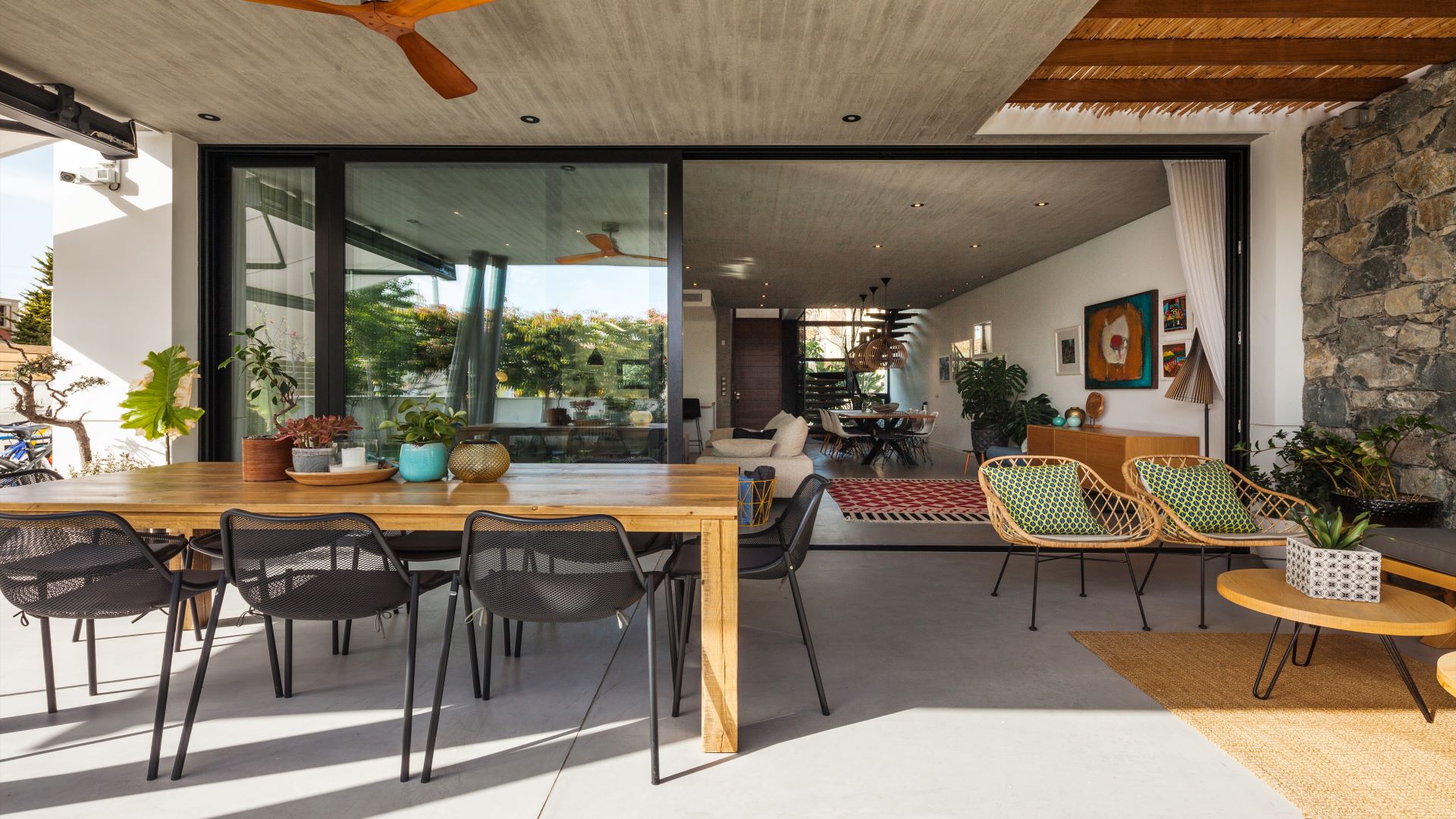

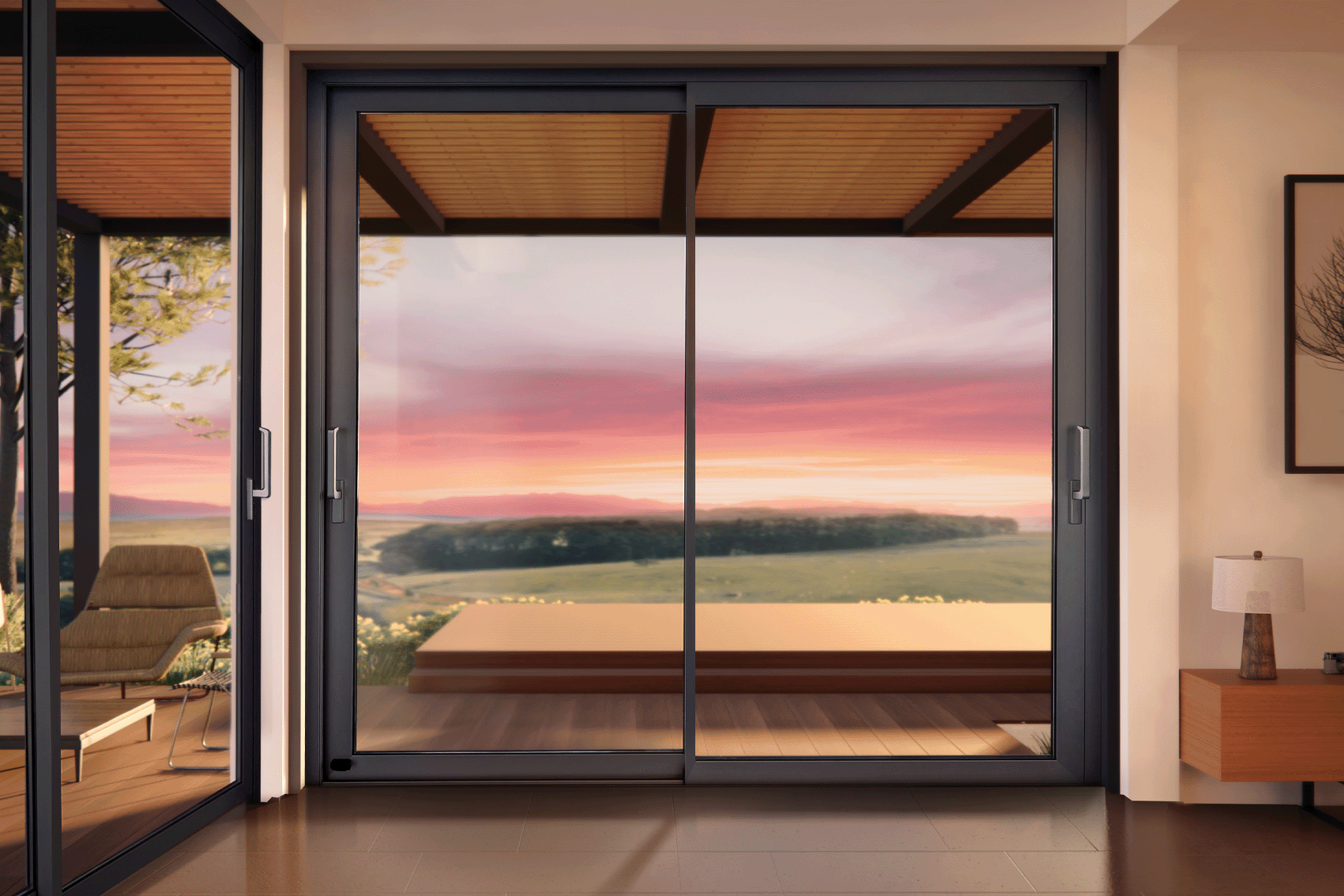

MU3000 series are MUSKITA’s longstanding, reliable cost-effective Sliding - Lift & Slide aluminium systems available with or without thermal insulation. Combining elegant linear or curved line design with easy installation and essential system versatility, series MU3000 are the perfect affordable solution for renovations or new constructions.
MU3000 is comprised of 5 systems:
Thermally Insulated
- MU3000 Thermal
- MU3000 Thermal Lift & Slide
- MU3000 Plus Thermal (curved)
Non-Insulated
- MU3000
- MU3000 Plus (curved)
Share
Copy Link
Technical Features & Solutions
- MU3000 systems are designed for mid-sized frame configurations with excellent air and water tightness, increased acoustic insulation and mechanical strength.
- The series design concept is based on the utilization of a main profile for the frame and one profile for the sash.
- The systems cover all possible frame configurations, single, double, triple and quadruple sashes, with 90° mullion free closing and with or without fly screens. The systems can also be concealed in walls and floors for a slim look.
- MU3000 systems are quick and easy to assemble and install, combining safety and functionality, without requiring high investment costs, making them ideal for renovations.
- High security is achieved with multiple locking points and high-tech precision accessories. A variety of high quality handles, embedded handles and mechanism are available from MUSKITA, Giesse Italy and G-U Germany.
- Thermal efficiency achieved by a thermal break system of 24 mm wide polyamides that thermally break the profiles (systems MU3000 Thermal, MU3000 Thermal Lift & Slide, MU3000 Plus Thermal).
- Smooth rolling of sashes is achieved with high-strength primary aluminium alloy roller guides and rollers that can withstand a maximum weight of up to 200 kg per sash.
Linear & curved design
- Versatile design concept provides options for linear (MU3000, MU3000 Thermal, MU3000 Thermal Lift & Slide) as well as curved line design (MU3000 Plus, MU3000 Plus Thermal).
Systems used in this Project
Affordable long standing solution for sliding - lift & slide systems
Linear & curved design
Versatile design concept provides options for linear (MU3000, MU3000 Thermal, MU3000 Thermal Lift & Slide) as well as curved line design (MU3000 Plus, MU3000 Plus Thermal).
Slim
Offers slim 33 mm vertical post profiles.
Cost-Effective
Longstanding, reliable and cost-effective systems, perfect for renovations or new constructions.
MU3000 Thermal / MU3000 Thermal L&S / MU3000 Plus Thermal / MU3000 / MU3000 Plus /
Thermal Transmittance – Uw [W/(m²K)]
≥ 1.7 / ≥ 1.7 / ≥ 1.7 / N/A / N/A
Sound Reduction
Up to 38 dB
Air Permeability
Class 3 / Class 4 / Class 3 / Class 3 / Class 3
Water Tightness
Class 4B / Class 6B / Class 4B / Class 4B / Class 4B
Resistance to Wind Load
Class C2 / Class B2 / Class C2 / Class C2 / Class C2
MU3000 Thermal / MU3000 Thermal L&S / MU3000 Plus Thermal / MU3000 / MU3000 Plus /
Rail Width
100 mm
Rail Height
38 & 49 / 49 / 38 & 49 / 49 / 49 mm
Sash Width
37.4 / 37.4 / 39 / 37 / 39 mm
Sash Height
80 & 87 / 80 & 87 / 80 / 76 / 76 mm
Interlock Section Width
33, 80 & 87 / 33, 80 & 87 / 88 / 78 / 78 mm
Maximum Sash Weight
200 kg
Glass Options
Up to 29 / 29 / 24 / 24 / 24 mm
Configurations
Double Track
Triple Track
Quadruple Track
Corner Track
