Built to Be Trusted
A fully integrated Lift & Slide aluminium system designed for smooth operation, structural stability, thermal performance, and long-term performance.
Sample Product
LIFT & SLIDE ALUMINIUM SYSTEM
Structure
Load-bearing aluminium profiles engineered for large spans.
Motion
Lift & slide mechanics designed for smooth, controlled movement.
Sealing
Multi-level gaskets managing air, water, and wind pressure.
Threshold
Flush integration balancing accessibility and thermal break.
Design Freedom
Slim profiles without compromising stability.
Thermal Performance
Engineered separation where it matters most.
Acoustic Comfort
Designed to reduce vibration and noise transfer.
Long-Term Durability
Materials and tolerances built for extended use.

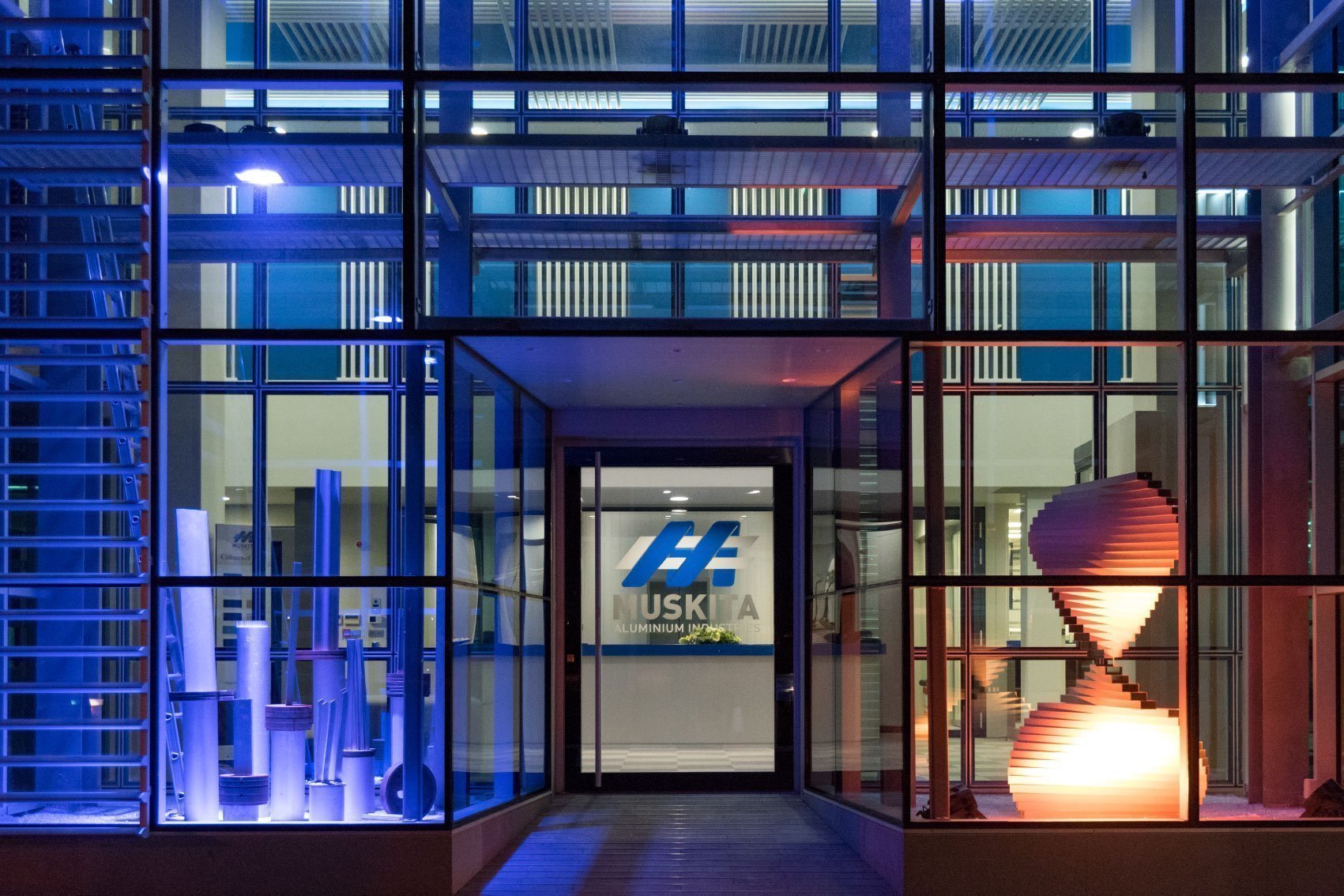

Comprehensive thermally insulated system for high-rise buildings with entirely glass facades and fast & easy installation
As part of the MU800 series, MUSKITA’s most internationally renowned system with worldwide applications, MU800 Structural Glazing is the ideal curtain wall system for high-rise buildings for demanding architectural constructions. MU800 SG ensures maximum versatility, combining exceptional performances, durability and cost-effectiveness with a proven structurally sound record in the most demanding environments.
MU800 SG is a thermally insulated system engineered for fast and easy installation, with windows blending seamlessly with glass units creating beautiful building façades.
Only glass is visible on the external building façades as panes are fixed onto the façade frame using specialised structural silicone, offering a wide range of design solutions.
Comprehensive thermally insulated system for high-rise buildings with entirely glass facades and fast & easy installation
As part of the MU800 series, MUSKITA’s most internationally renowned system with worldwide applications, MU800 Structural Glazing is the ideal curtain wall system for high-rise buildings for demanding architectural constructions. MU800 SG ensures maximum versatility, combining exceptional performances, durability and cost-effectiveness with a proven structurally sound record in the most demanding environments.
MU800 SG is a thermally insulated system engineered for fast and easy installation, with windows blending seamlessly with glass units creating beautiful building façades.
Only glass is visible on the external building façades as panes are fixed onto the façade frame using specialised structural silicone, offering a wide range of design solutions.
Technical Data
Detailed specifications for accurate planning and comparison.
Mullion Width: 55 mm
Mullion Depth: 116.5 - 220.5 mm
Maximum Sash Weight: 120 kg
Glass Options: Up to 54 mm
Thermal Transmittance – Uw [W/(m²K)]: ≥ 0.79
Sound Reduction: 47 dB
Air Permeability: 600 Pa
Water Tightness: 600 Pa
Resistance to Wind Load: 2400 Pa Service Load; 3600 Pa Safety Load
Impact Resistance: Pass
