Built to Be Trusted
A refined Sliding - Lift & Slide system combining slim aesthetics, large dimensions and design versatility with class-leading energy efficiency and watertightness.
MU114
SLIDE - LIFT & SLIDE ALUMINIUM SYSTEM
Three Systems. More Possibilities.
Choose between MU114 Slide, MU114 Lift & Slide and MU114 Hotel Solution – Sliding / Lift & Slide - Fixed, offering flexible fixed and sliding configurations for contemporary residences and hotels.
Large Openings
Engineered for large openings, bringing more light and openness to architectural spaces.
Design Flexibility
Extensive configurations, including corner frames without vertical posts for unobstructed views, and flush-with-floor solutions for a seamless transition between spaces.
Slim Sightlines
Slim 33 mm vertical interlocks for slim sightlines and expansive views.
Effortless Operation & Automations
Advanced Lift & Slide solutions make even large sashes smooth and easy to operate. Automations can be integrated for remote-controlled configurations.
Exceptional Performance
Engineered for demanding contemporary buildings, it achieves the highest energy efficiency and water tightness ratings in its category.

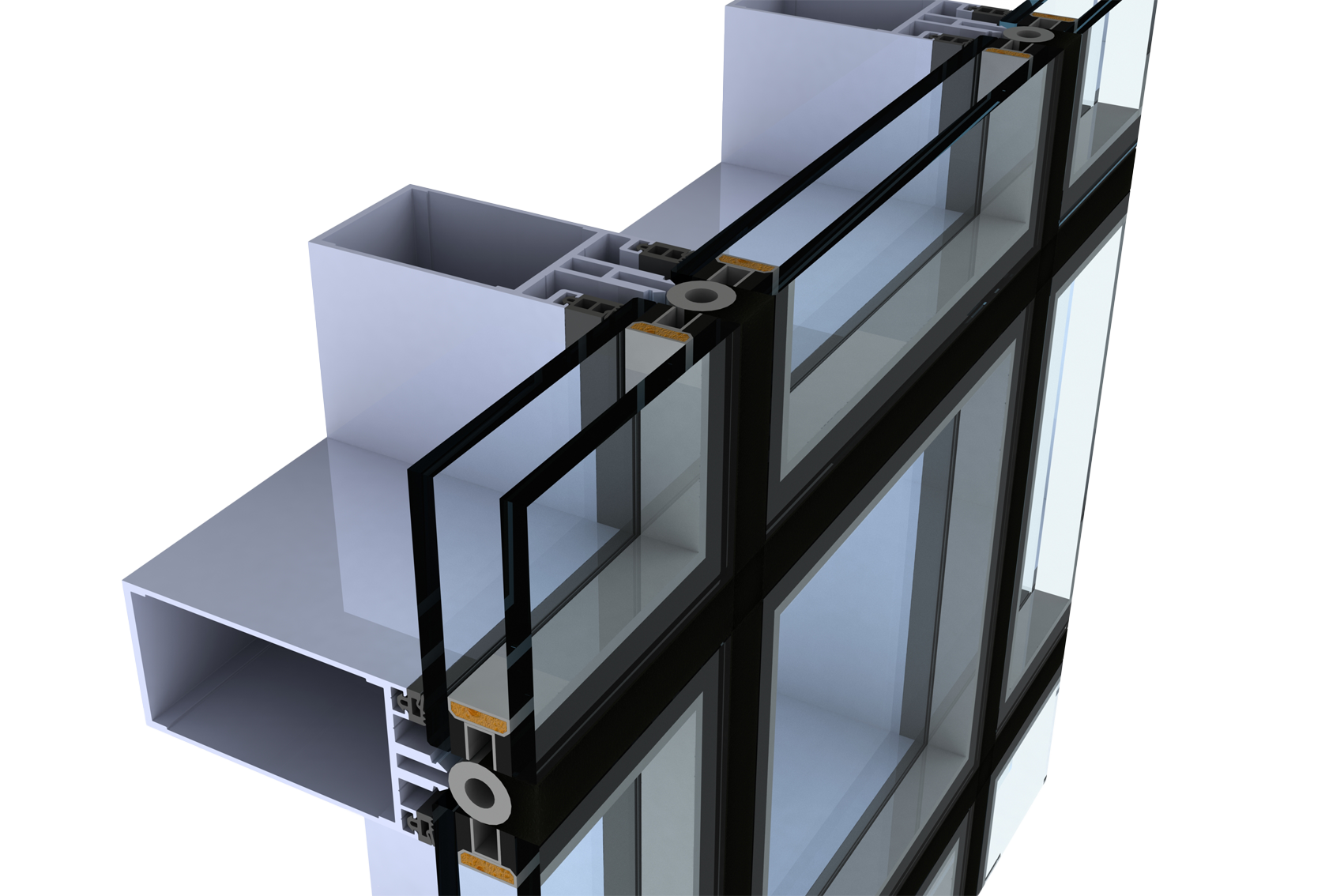

System in Detail
- The system is thermally insulated and “severe weather rated” by full size dynamic tests conducted according to CWCT UK test sequence and meets the strictest European and international standards achieving global commercial success from Northern Europe to the cyclonic South Indian Ocean.
- The system closes perimetrically with EPDM watertight gaskets, foam backing rods and structural silicone, achieving perfect air and water tightness, preventing the transfer of temperatures from the outside in and vice versa.
- Mullions are 55 mm hollow sections, providing very high resistance to wind pressure.
High thermal efficiency is achieved by:
- A thermal break system of 24-32 mm wide polyamides that thermally break the profiles
- hard PVC that covers the sash and track interior
- vertical post insulation.
Technical Data MU800 SG
Detailed specifications for accurate planning and comparison.
Mullion - Transom Width: 55 mm
Mullion - Transom Depth: 116.5 - 220.5 mm
Maximum Sash Weight: 120 kg
Glass Options: Up to 54 mm
Thermal Transmittance – Uw [W/(m²K)]: ≥ 0.79
Sound Reduction: 47 dB
Air Permeability: 600 Pa
Water Tightness: 600 Pa
Resistance to Wind Load: 2400 Pa Service Load; 3600 Pa Safety Load
Impact Resistance: Pass
Over 80 finishes and colours, ready to bring your design to life.
Explore our extensive range of in-stock colours, from our exclusive Anodized finishes and Superdurable powder-coated colours to natural wood effects and distinctive sublimation finishes. With over 80 options readily available, there’s a finish to complement every architectural style and design vision.
