MU2600

Built to Be Trusted

Our ultimate thermal hinged system, combining outstanding energy efficiency, sound insulation and advanced security with exceptional design versatility. Available in linear or curved design, MU2075 offers solutions for every configuration and the most demanding projects.

MU2075

HINGED ALUMINIUM SYSTEM

Outstanding Performance

Exceptional energy efficiency and sound insulation, with excellent watertightness and air permeability even in extreme weather conditions.

Advanced Security

Multiple locking points and high-security hardware, with tested and certified RC3 burglar resistance.

Linear or Curved Design

Choose between straight-line profiles or softer curved designs to complement different architectural styles.

Micro-Ventilation

Integrated micro-ventilation allows natural airflow through a secure minimal sash opening while the window remains locked.

Exceptional Versatility

Extensive configuration possibilities, from standard openings to Tilt & Turn, Pivot, double-active doors, shopfronts and projected sashes.

Robust Construction

Engineered for strength and functionality, while remaining quick and straightforward to install.

System in Detail

Four system options combine linear or curved aesthetics with thermal performance levels, providing the flexibility to meet diverse architectural and project requirements.

MU2075
MU2075 Curve
MU2075 Elite
MU2075 Elite Plus

The system offers multiple design solutions and covers all possible frame configurations such as single or even sash numbers, with or without doors and opening inward or outward. System MU2600 is constructed to open fully for maximum utilization of views, merging the inside and outside.
MU2600 Thermal is available in straight or curved lined design and MU2600 is available in curved line design.
High security is achieved with multiple locking points and high-tech precision accessories. A variety of high quality handles, embedded handles and mechanism are available from MUSKITA, Giesse Italy and G-U Germany.
Smooth rolling of sashes is achieved with a ceiling sliding mechanism (top-hung typology) and the rollers that can withstand a maximum weight of up to 100 kg per sash.
Excellent air and water tightness is ensured by specialized sealing EPDM gaskets and the system’s accessories.
MU2600 Thermal achieves high thermal efficiency through the 20 mm wide polyamides that thermally break the profiles, contributing to excellent energy savings.

Excellent versatility with vast design capabilities and solutions for every possible configuration:

MU2075 covers all possible frame configuration from standard to Tilt & Turn, Tilt & Slide or Pivot Door and window options, double active doors, as well as shopfronts or projected sashes for even the most demanding projects.
Ability to combine single, multi-sash or fixed frames.
Versatile design concept provides options for linear (MU2075, MU2075 Elite, MU2075 Elite Plus) as well as curved line design (MU2075 Curve).

High security achieved with multiple locking points and high security customized hardware.
Tested and certified for excellent burglar-resistance with one of the highest RC3 burglar-resistance category certification.
Compatible with both Camera Europea multiple locking hardware and Camera ALU16 perimetric locking hardware.

Rail Width: 60 mm

Rail Height: 40, 65 & 90 / 40, 65 & 90 / 31 & 78 mm

Sash Width: 60 mm

Sash Height: 64 / 43.5 / 64 mm

Maximum Sash Weight: 100 kg

Glass Options: Up to 44 mm

Thermal Transmittance – Uw [W/(m²K)]: ≥ 1.4 / ≥ 1.4 / N/A

Sound Reduction: Up to 37 dB

Air Permeability: Class 2

Water Tightness: Class 8A

Resistance to Wind Load: Class C3

6 Sashes

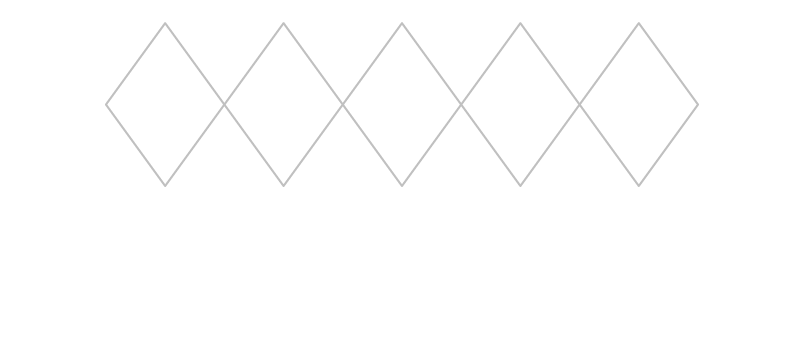

6 + 4 Sashes

5 + 3 Sashes

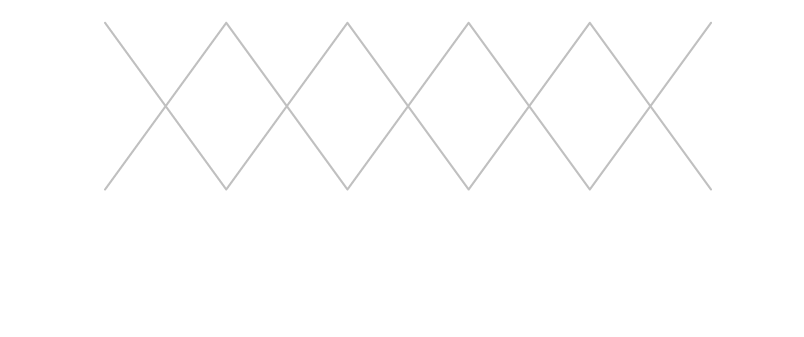

5 + 5 Sashes

Find Your Colour

Over 80 finishes and colours, ready to bring your design to life.

Explore our extensive range of in-stock colours, from our exclusive Anodized finishes and Superdurable powder-coated colours to natural wood effects and distinctive sublimation finishes. With over 80 options readily available, there’s a finish to complement every architectural style and design vision.
