MU800

Built to Be Trusted

MU800 is MUSKITA’s internationally renowned thermally insulated curtain wall system, combining exceptional performance, durability and design flexibility. Engineered for impressive glass façades, it offers efficient installation and proven reliability in demanding environments, from residential to high-rise commercial buildings.

MU800

CURTAIN WALL

Slim Sightlines

Slim mullions of just 35 mm create elegant glass façades, maximising transparency and natural light.

Tested for Extreme Conditions

Thermally insulated and severe-weather rated through full-scale dynamic testing to CWCT UK protocols, meeting stringent European and international standards for demanding climates worldwide, delivering excellent air permeability, watertightness and structural reliability.

Proven Performance Worldwide

Successfully specified for demanding architectural projects across diverse climates, from Northern Europe to the cyclonic South Indian Ocean.

Exceptional Design Flexibility

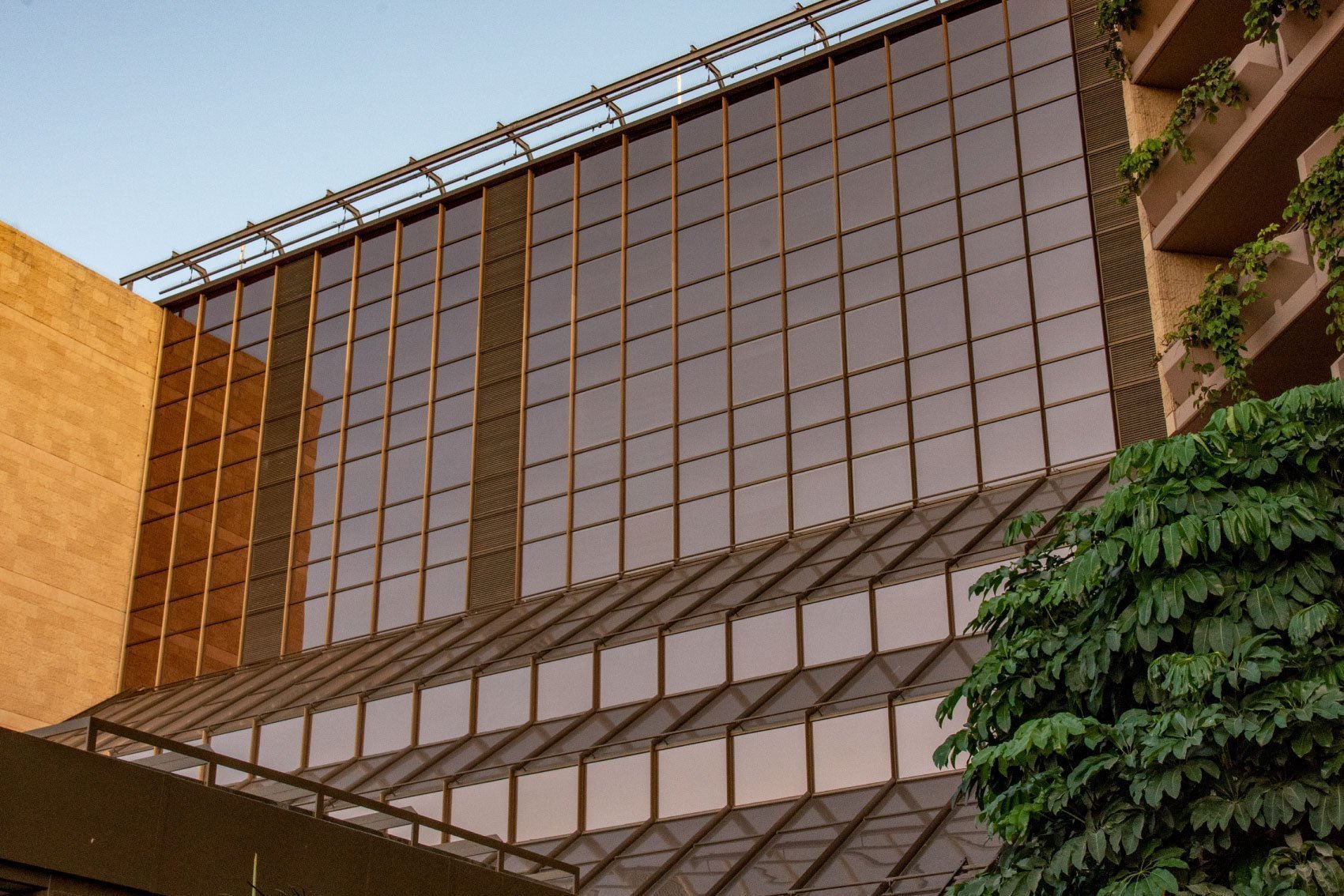

Extensive mullion, transom and cover plate options accommodate flat, inclined and curved façades, enabling distinctive architectural solutions.

Advanced Structural Engineering

Robust 35 or 55 mm mullions and specialised adjustable brackets accommodate building movement and seismic loads while maintaining structural integrity.

Versatile Drainage Solutions

Available with mullion or transom drainage, including compartmentalised drainage options for demanding multi-storey applications.

Efficient Fabrication & Installation

Engineered for straightforward assembly, installation and glass replacement, with optimised profiles for greater project efficiency.

Seamless System Integration

Compatible with MUSKITA window, door and shading systems for a cohesive architectural appearance and enhanced functionality.

System in Detail

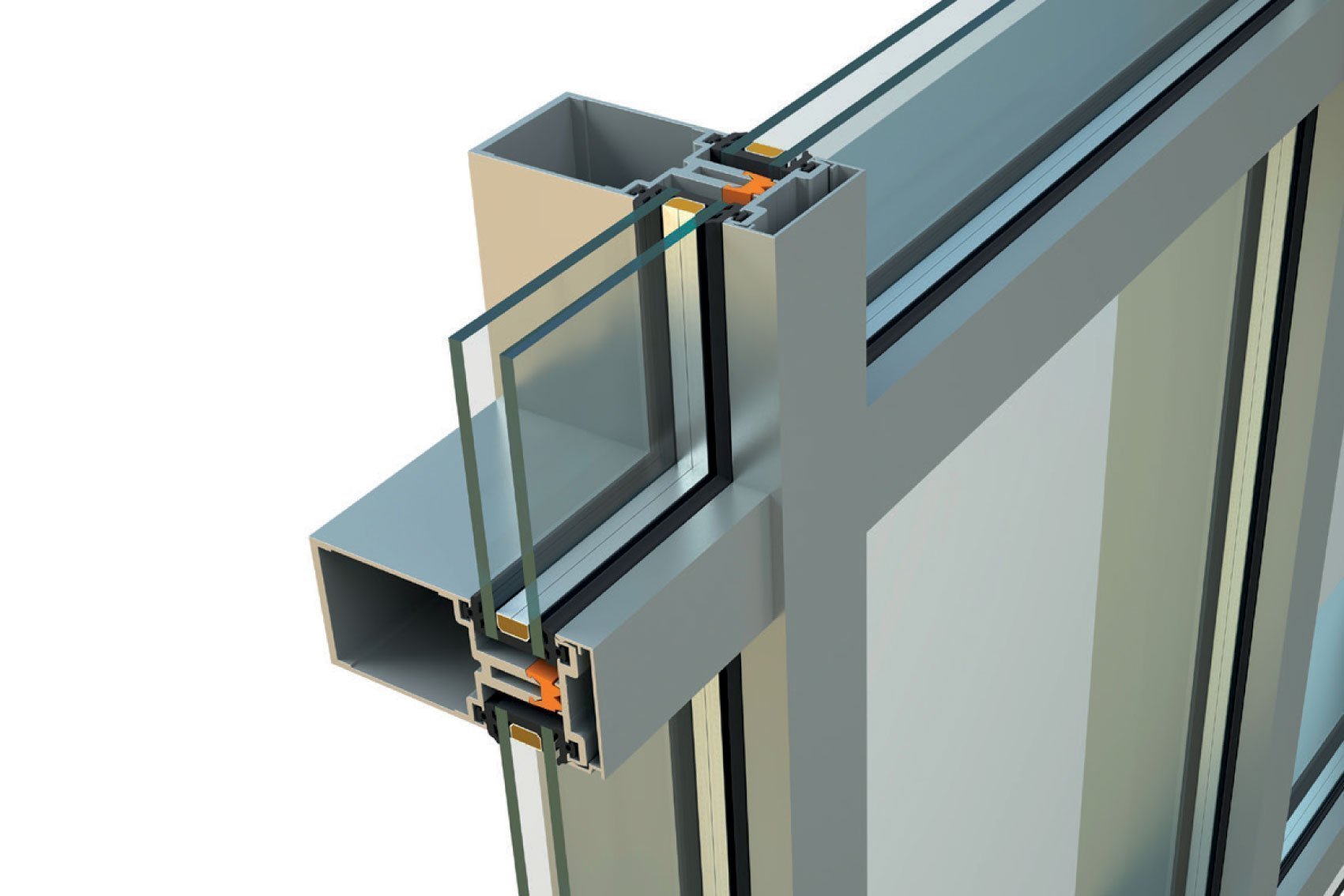

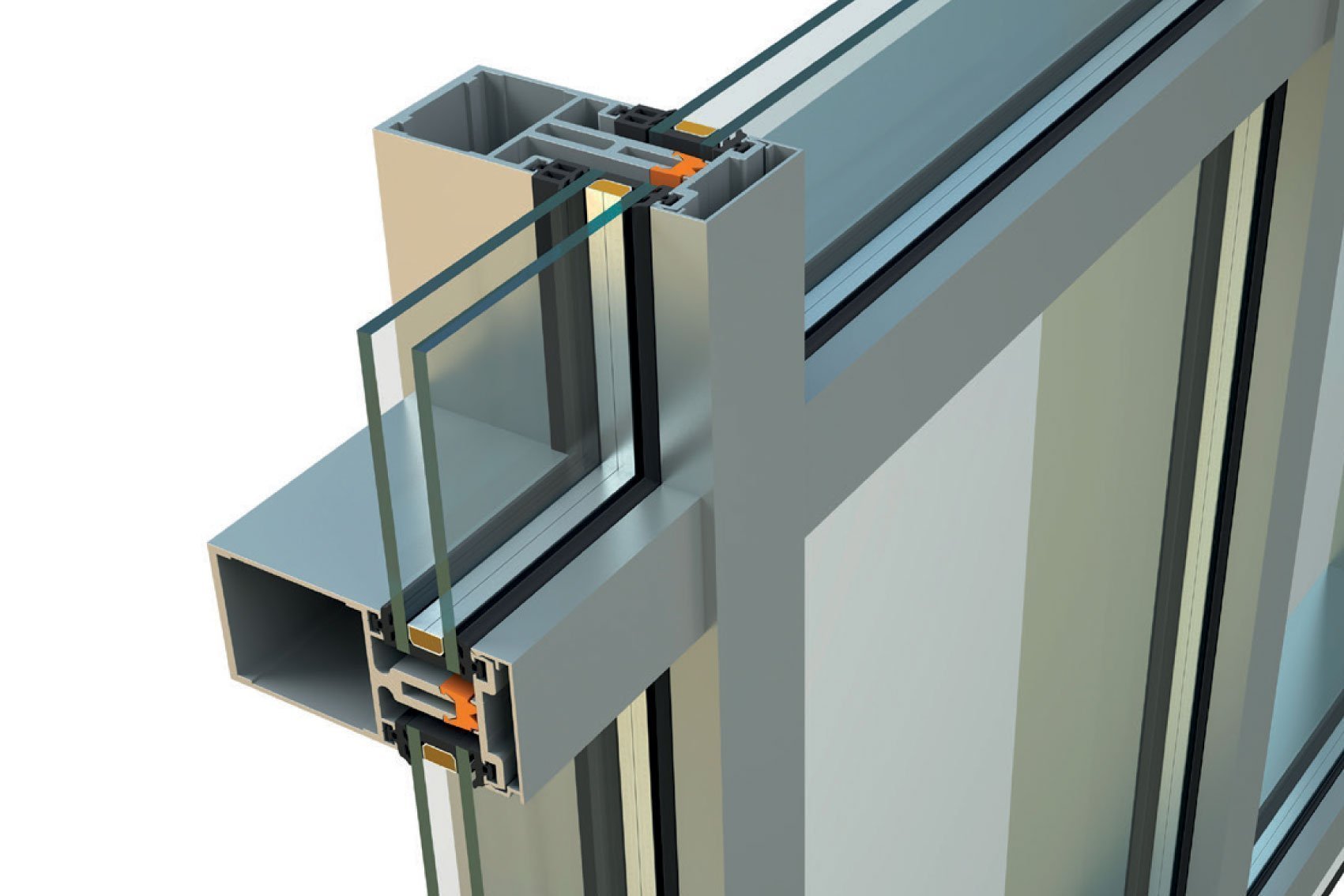

MU800 is available in two types: mullion drained and transom drained.
The system comes in a suite of mullion/ transom combinations which range from 94 mm up to 250 mm and are also available in customized sizes.
Mullions are interspaced at each floor so that each floor takes only the weight of its frames, which allows for better expansion and contraction.
The system is engineered with the advantage of being flexible. It can move up or down, left or right, greatly reducing the impact of earthquakes. Movements from seismic loads on mullions and transoms are absorbed by the specialized support brackets of the system.
Mullion fixing is achieved with aluminium brackets that are adjustable left or right and up or down. Brackets can be anodized or powder coated and steel brackets may also be used.
Glazing units are securely retained into position, on all 4 sides, with purposely designed pressure plates.
The system offers several auxiliary profiles for the upper and lower trim of vertical column profiles and special profile joints between floor slabs.
The system is ventilated by the frame, mullions and transoms.
Our technical support team offers shop drawings for large projects, detailed static, acoustic and thermal calculations, as well as installation guidelines and support to architects and specifiers.

The system is thermally insulated and “severe weather rated” by full size dynamic tests conducted according to CWCT UK test sequence and meets the strictest European and international standards achieving global commercial success from Northern Europe to the cyclonic South Indian Ocean.
The system seals with EPDM watertight gaskets, rubber insulator profiles between the mullions/transoms and the pressure plates supporting the glazing units, achieving perfect air and water tightness, while preventing heat transfer from the outside in and vice versa.
Mullions are 35 mm (slim) or 55 mm hollow sections, providing very high resistance to wind pressure.

The system is engineered for fast and easy fabrication and installation.
MU800 offers an internal and external sight line of 55 mm or 35 mm for slim applications.
The system is available with a large range of mullions and concealed reinforcers, offering design flexibility. Solutions range from low-rise, high-rise and large sloped/ inclined glazed applications and curved configurations while ensuring structural integrity.
Large selection of shaped cover plates offer a wide range of design options.
MU800 can be zone drained with the use of specialised draining profiles and fully ventilated transom and mullion drained versions are also available. This offers further design flexibility especially for high-rise applications.
Potential broken glass panes can be easily replaced.
Top hung opening units that are fully integrated into load-bearing structure can be constructed.
Concealed and inspectable wiring possibilities via transoms.
Custom made solutions are offered for specific project requirements.
Accommodates wide range of shading solutions and is compatible with the MUSKITA range of windows and doors.
Metal and finishing directly from our own in-house production lines assures quality, fast deliveries and offers substantial cost reductions via mullion length optimization for value added engineering.
